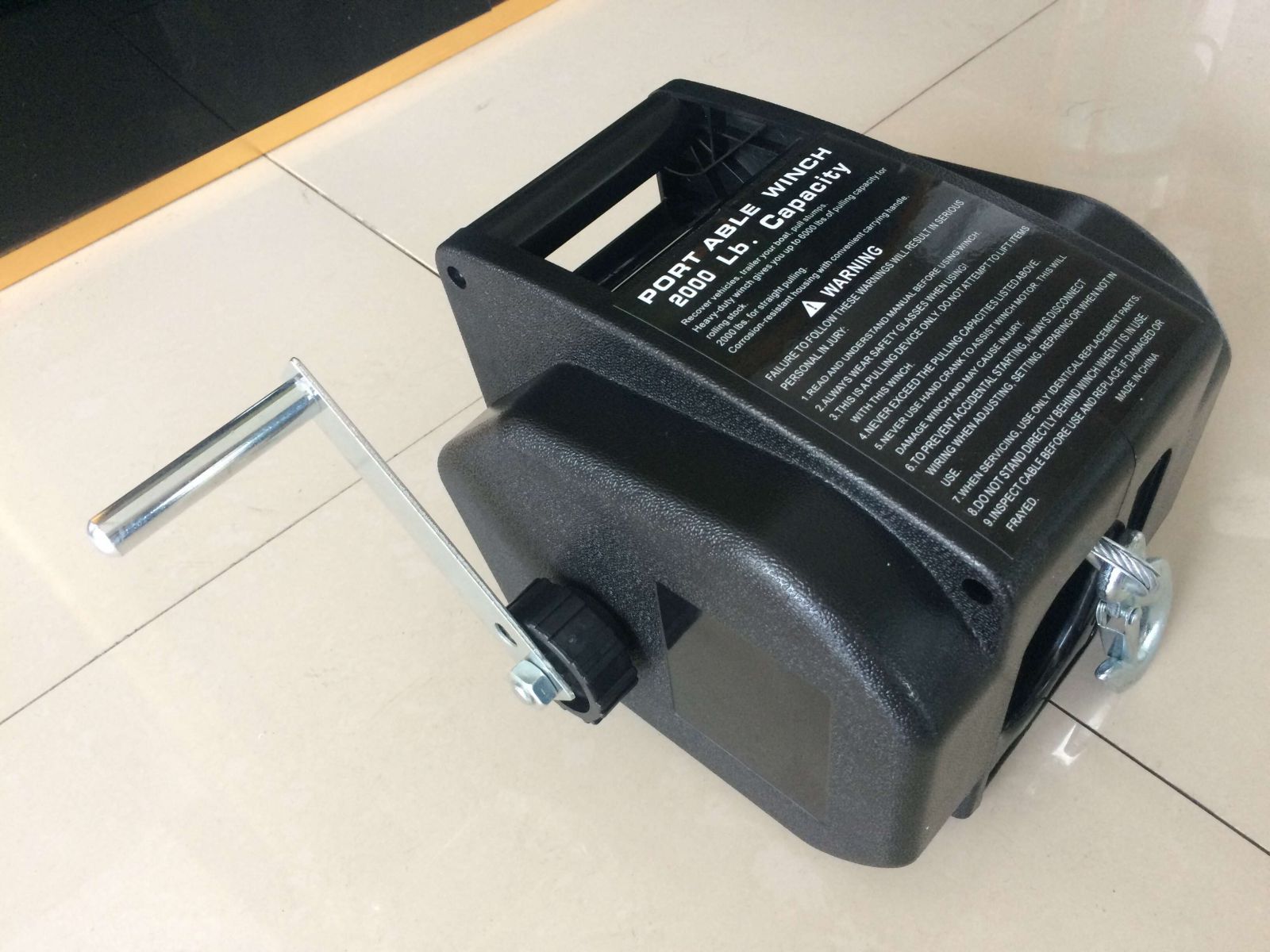

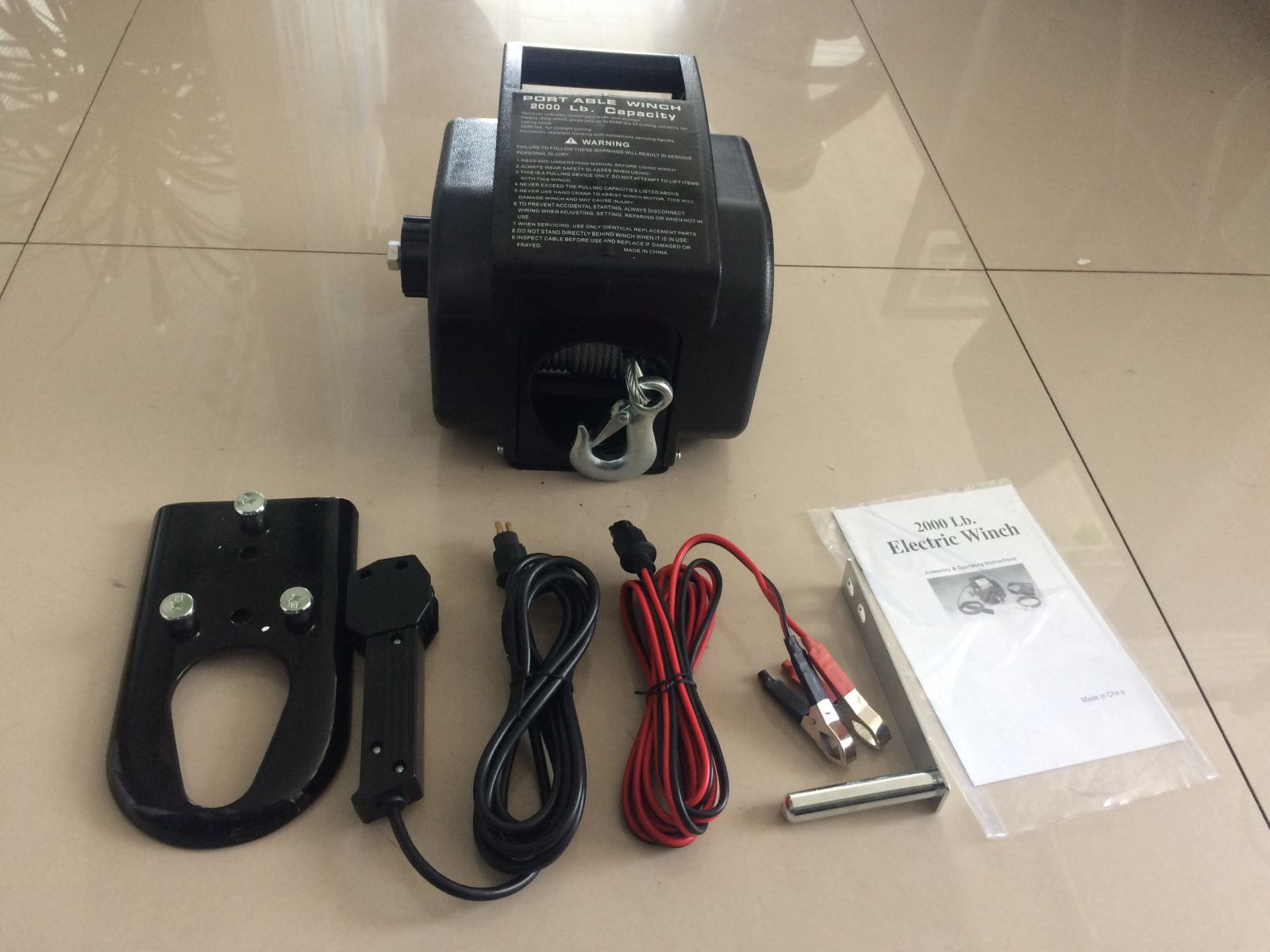

1, electric winch is installed in the ship's main deck for the ship, anchored and income cable, and with a human anchor, cable system.
2, winch mainly by the motor, gear box, winch device, brake devices and other components.
3, the distance between the winch head and the installation of the motor plane according to the needs of the ship can be adjusted size.
Rated Pulling Capacity | 2000lbs(900kg) |
Pulling Capacity for Wheeled Product | 6000lbs(2700kg) |
Pulling Capacity for Boats | 5000lbs(2250kg) |
Max Boat Size | 18 Feet |
Linear Speed | 6ft/min without load |
Rope | Φ4.8mm×9.2m |
Hook Size | 1/4" |
Power Supply | 12 Volt |

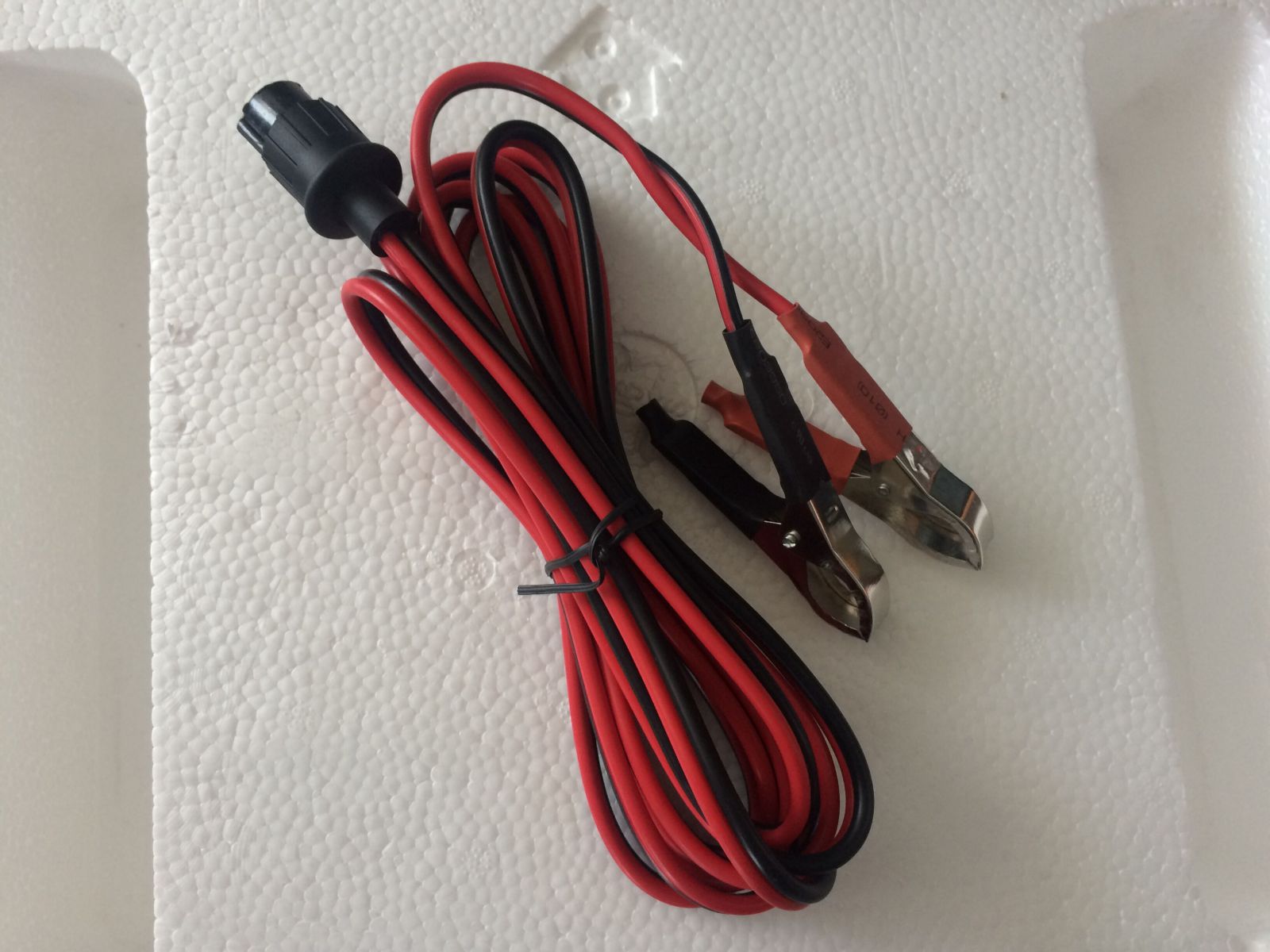

Power Cord | 5m |

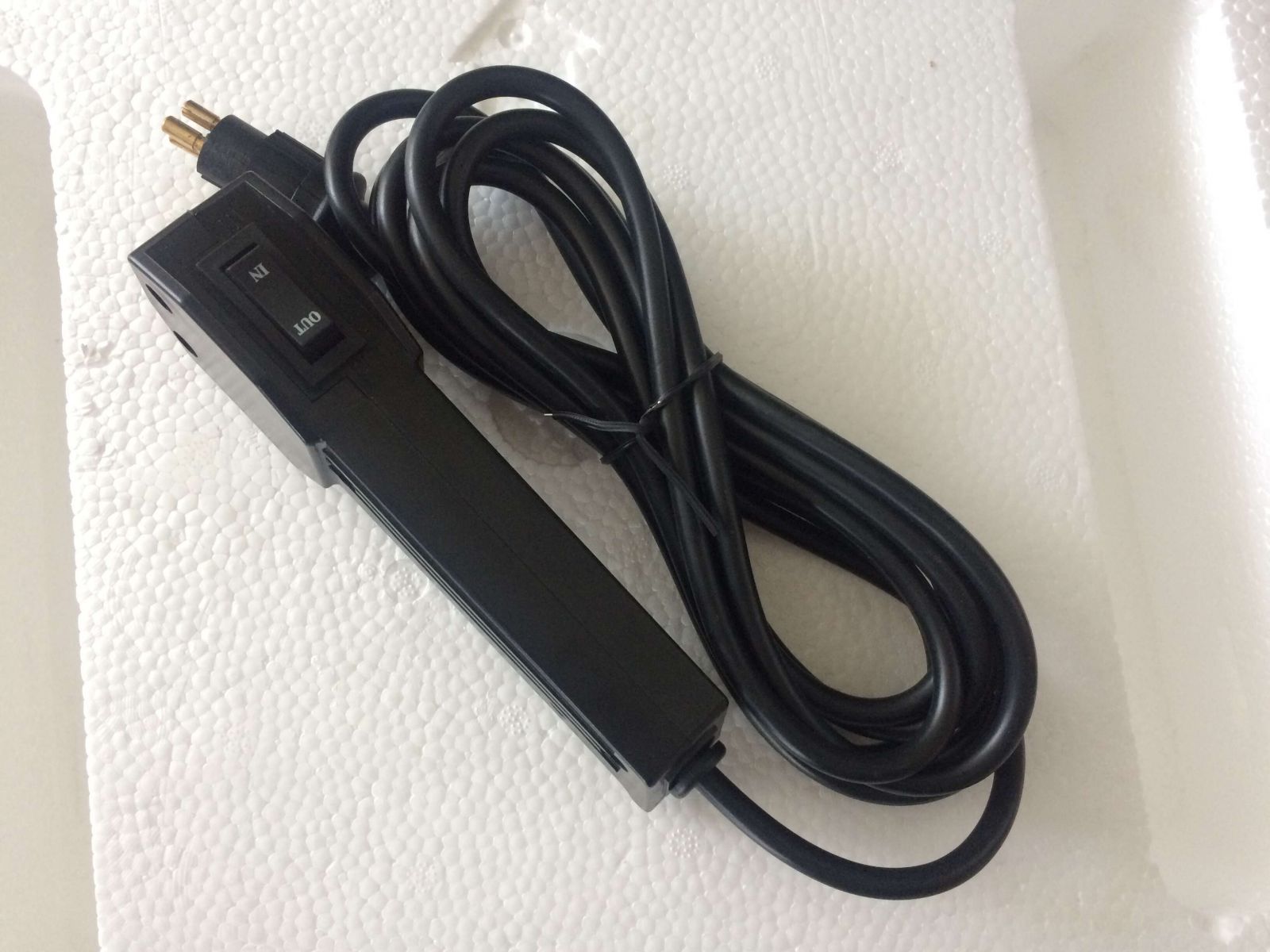

Remote Switch | 9'9" |

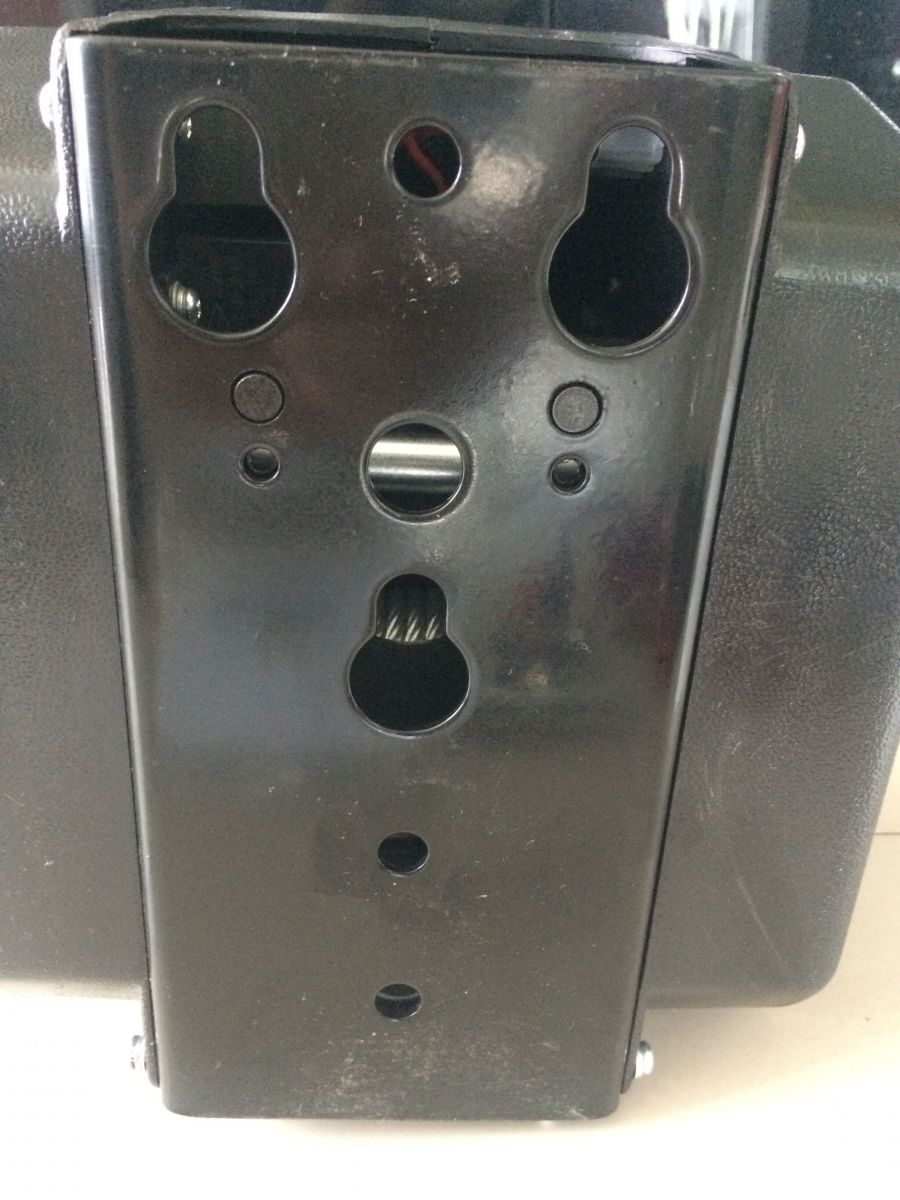

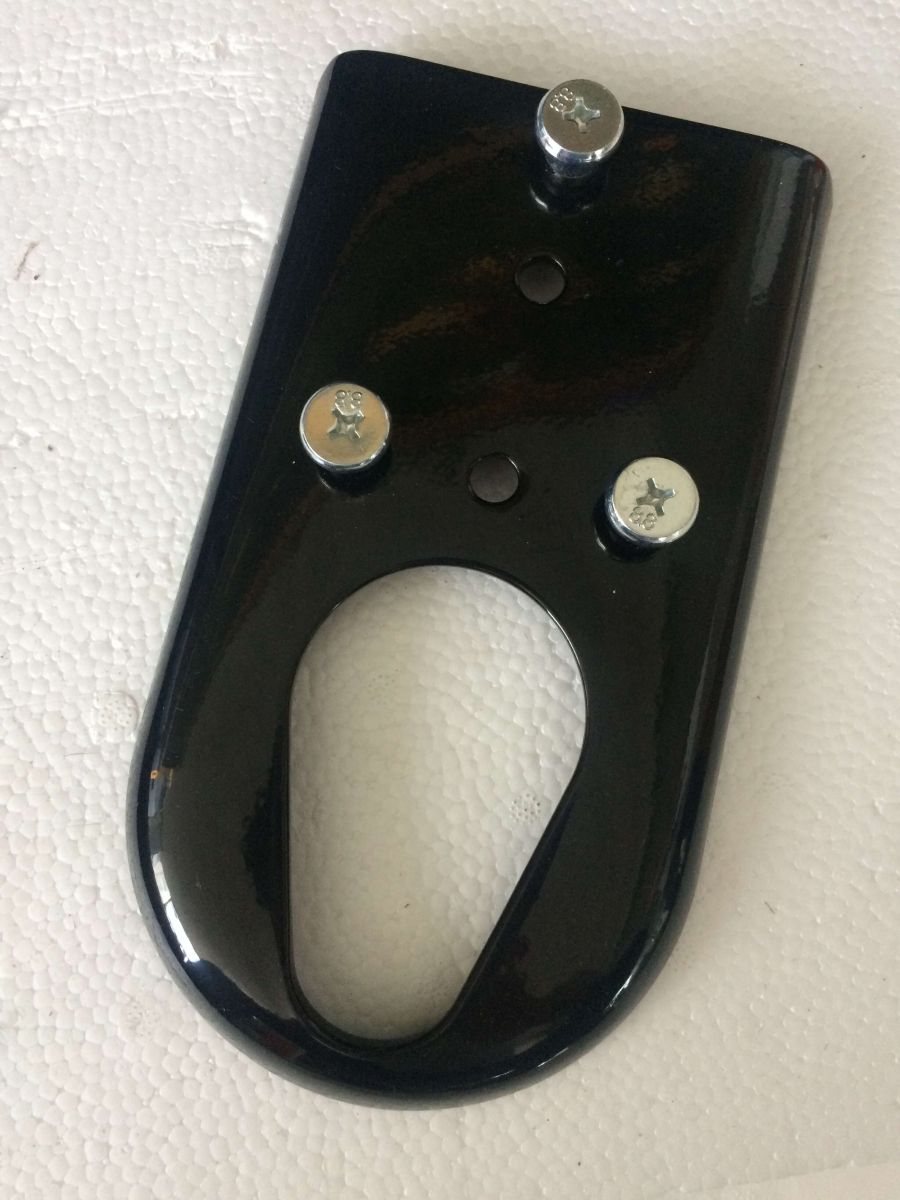

Mounting Plate | 8-3/4"×4-15/16"×3/16" |
Overall Dimensions | 9-1/2"×7-1/2"×10" |
Gross Weight | 23kg |
Packing Size | 405mm×300mm×525mm,2PC/CTN |
