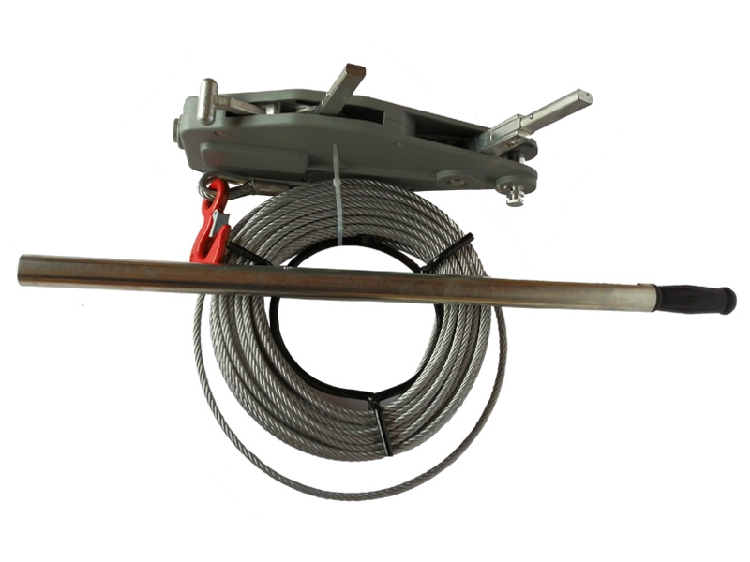

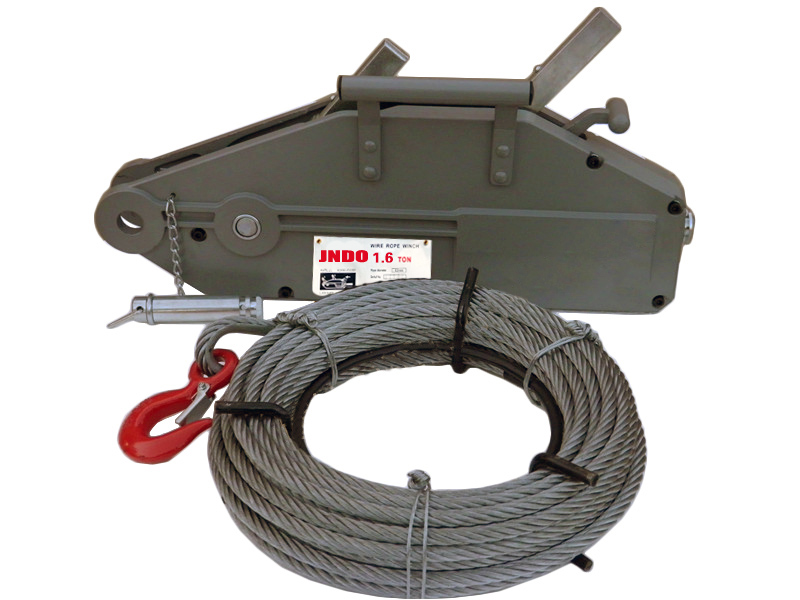

wire rope pulling hoist
  • wire rope pulling hoist

  • description:wire rope pulling hoist is an extremely versatile and portable unit for pulling, lifting, lowering and securing loads, that is both easy and safe to operate

Content

wire rope pulling hoist

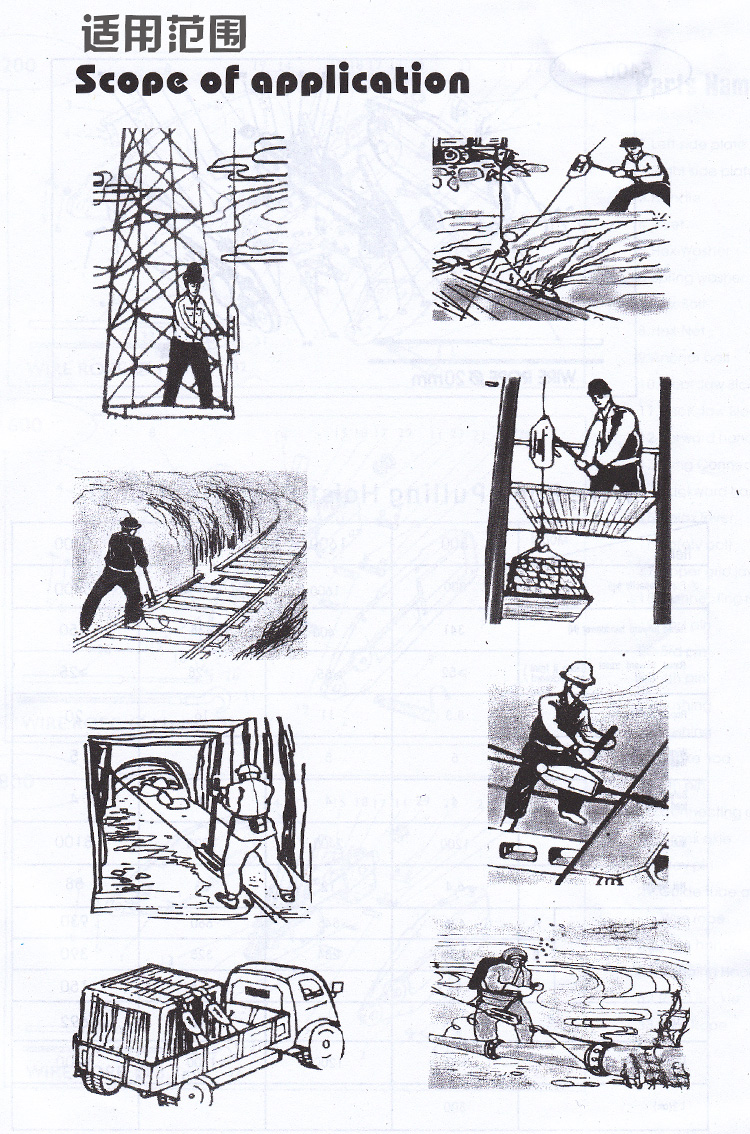

wire rope pulling hosit application place







parameter of wire rope pulling hoist

Model

0.8T*30M

1.6T*30M

3.2T*20M

5.4T*20M

Capacity

800KG

1600KG

3200KG

5400KG

Rated horizontal traction

1200KG

2400KG

4000KG

8000KG

Full load force

≤343N

≤441N

≤441N

≤745N

Max stroke

≥52MM

≥55MM

≥28MM

≥30MM

Dia of wire rope

8MM

11MM

16MM

20MM

Length of wire rope



30米

30米

20米

20米

Safety factor of wire rope

5

5

5

5

Size(L*W*H)

420x80x250MM

550x100x280MM

660X110X380MM

930X152X480MM

Weight

6KG

12KG

23KG

56.5KG

Weight of wire rope

7KG

13KG

26KG

50KG

Total weight

13KG

25KG

49KG

106.5KG
