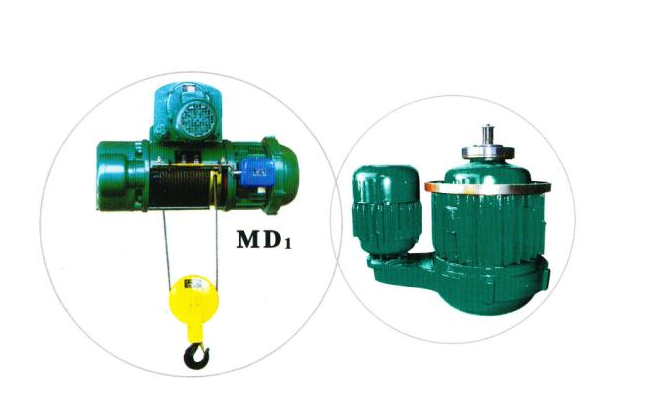

MD1 WIRE ROPE ELECTRIC HOIST

The MD1 electric hoist replaces the old series. The utility model has the advantages of light weight, small volume, compact structure, variety specifications and stable operation. They can be used on straight, curved, circular overhead tracks on the same plane, or on electric single grain, manual single beam, bridge, suspension, cantilever, gantry cranes, etc. .
The parts of the product can be roughly divided into: reducer, control box, wire rope, conical motor, push button switch.
The functions and functions of each part are as follows:
Reducer: It adopts three-stage fixed-axis helical gear transmission mechanism. The gear and gear shaft are made of heat-treated alloy steel. The box and cover are made of high-quality cast iron. The assembly is tight and the seal is good.
Control box: It is a device that can cut off the main circuit in an emergency and has a fire limiter for the up and down stroke protection section.
Wire rope: It is a type of lifting wire rope, which guarantees durability. Conical motor: The hoisting motor uses a large dynamic torque cone-rotor asynchronous motor without the need for an external brake.
Push button switch: It is hand-operated, light and flexible, and has two methods: rope control and cordless remote control.
Scope of application: MD1 is widely used in factories, warehouses, terminals, power stations, logging farms, etc. It is the most ideal lifting equipment for lifting and transporting articles.
Operating conditions: Ambient temperature: 20 °C ~ +40 °C Working system: Intermediate JC25% Heavy: JC40% When the lifting capacity of the electric hoist is reduced by 30% in the intermediate working system, it is the electric hoist of the heavy working system JC40%.
