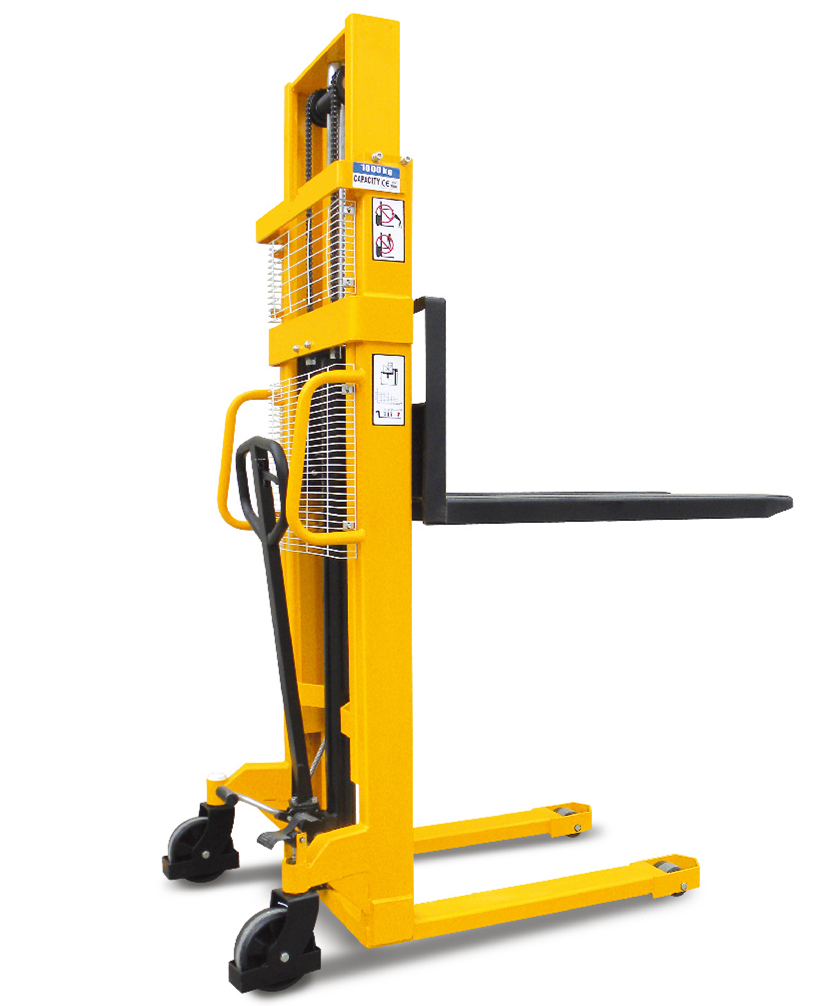

Hand forklift pallet truck stacker is a low altitude lifting and short distance transportation tool. It has following features: small volume, light weight, compact structure, beautiful work style, simple operation, good seal performance, work safety and reliability. Applicable to warehouses, ports, loading bays and lifting or carrying heavy loads on solid surfaces.
Model
|
MST-A1.0
|
MST-A2.0
|
MST-A3.0
|
Rated lifting capacity(kg)
|
1000
|
2000
|
3000
|
Max. lifting height(mm)
|
1600
|
1600
|
1600
|
Lowered height of forks(mm)
|
85
|
85
|
100
|
Fork length(mm)
|
900
|
900
|
1000
|
Adjustable width of forks(mm)
|
230-580
|
270-680
|
320-770
|
Outer width of front legs(mm)
|
750
|
750
|
750
|
Operation power of crank(kg)
|
24
|
32
|
40
|
Min. refuel volume for fuel tank(L)
|
1.6
|
2.0
|
3.0
|
Front wheel size(mm)
|
Φ85×50
|
Φ85×50
|
Φ100×50
|
Rear wheel size(mm)
|
Φ180×50
|
Φ180×50
|
Φ180×50
|
Overall size(mm)
|
2040×750×1420
|
2050×750×1480
|
2050×800×1650
|
Self weight(kg)
|
115
|
180
|
280
|
